Description
2″ LIFT KIT – T1N 2002-2006 SPRINTER 2WD (2002-2006 2500 and 3500)

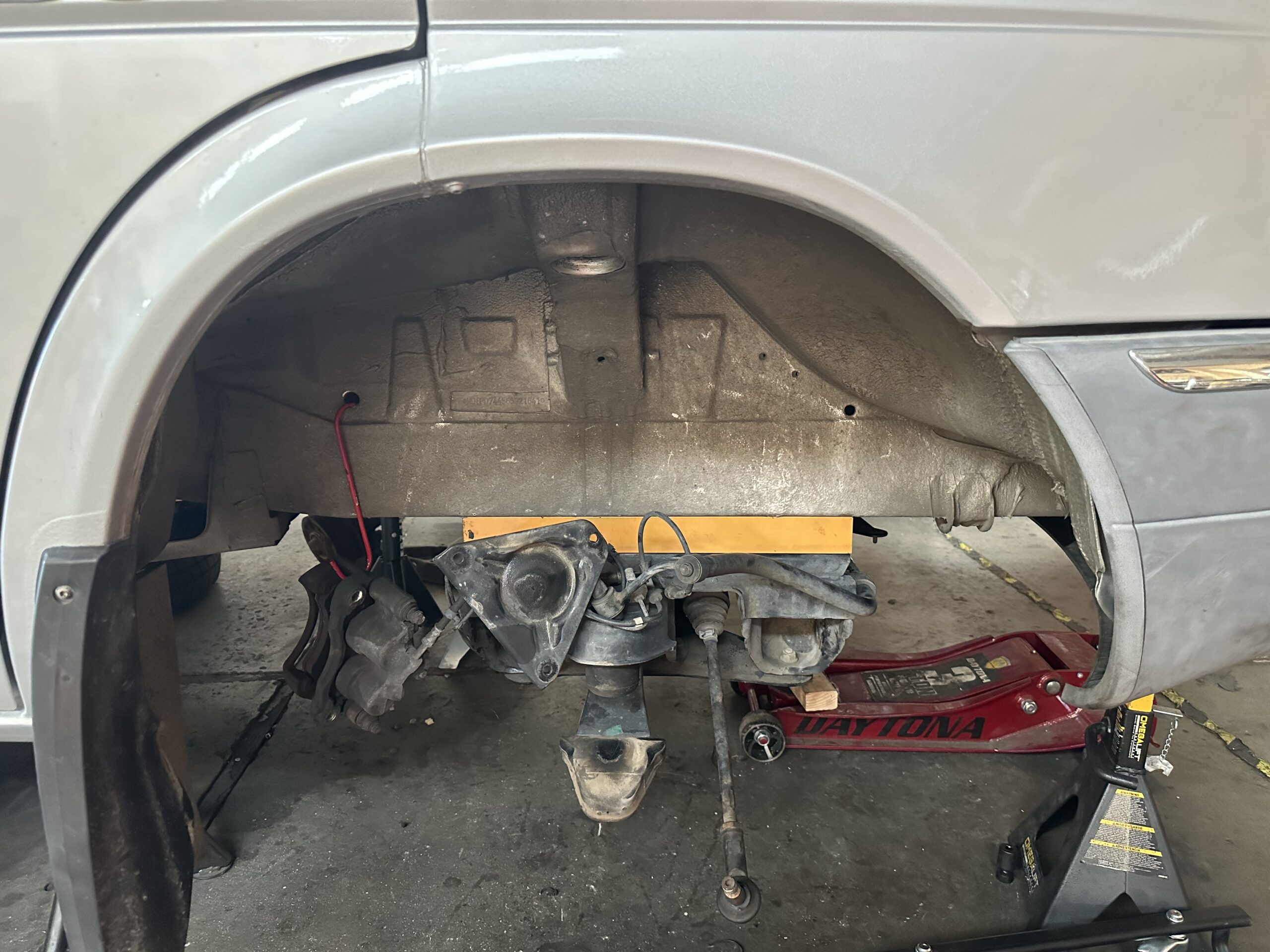

The High Function 2″ lift kit gives your 2wd T1N Sprinter the clearance it needs to take you farther on your next adventure. Our bolt-on suspension lift provides clearance for up to a 33″ tire allowing for higher ground clearance off-road helping to avoid obstacles on the trail. The HF kit retains the stock vehicle suspension geometry, payload rating and ride quality so you can enjoy all the benefits of increased clearance without any adverse effects. The lift block will retain your factory spring rate and ride quality, and pairs nicely with one of our tuned shock upgrades for an increase in comfort, compliance and control. All of our kit components are constructed of high quality materials here in the USA and come powder coated for durability and corrosion resistance.

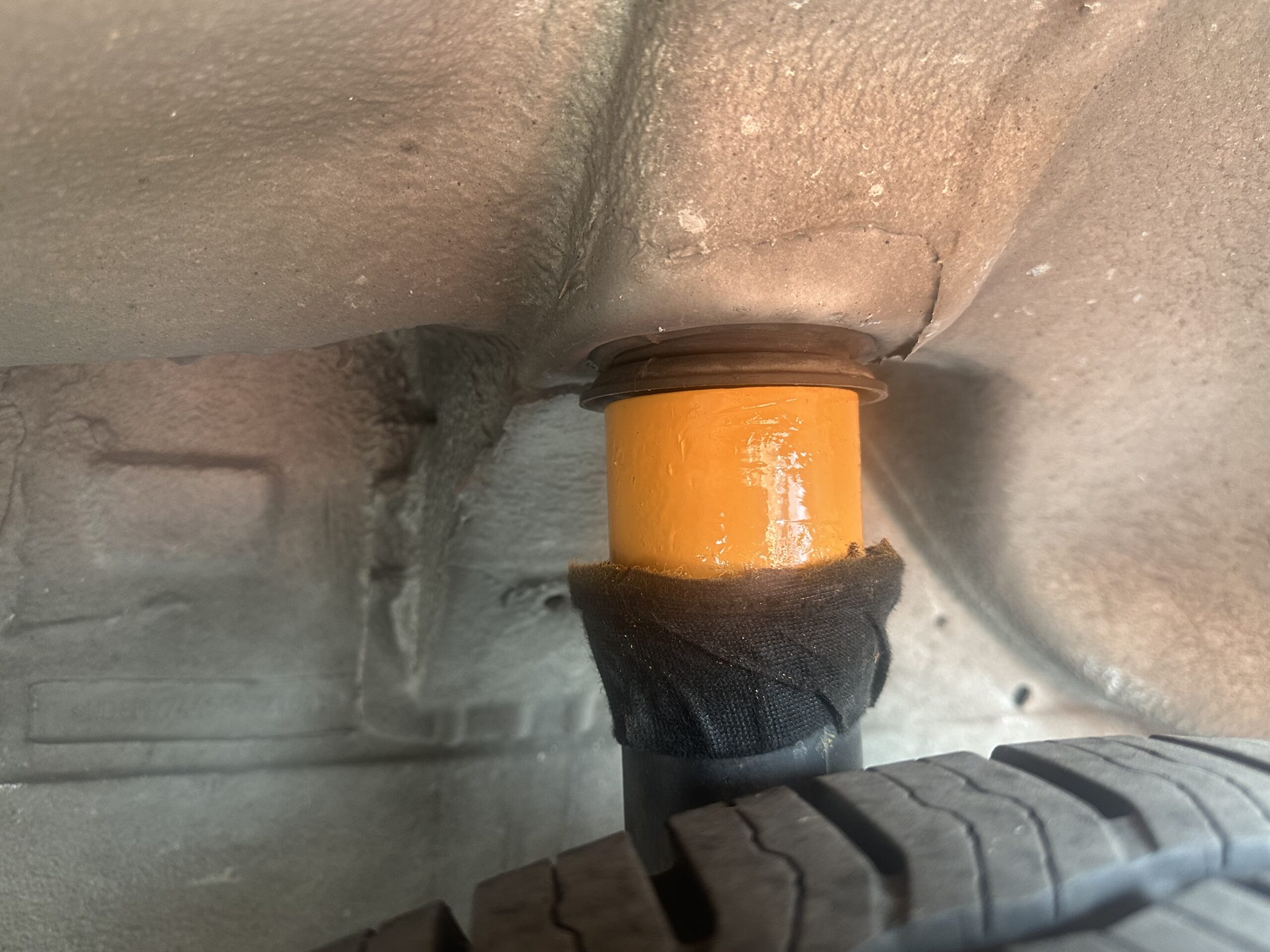

- Front 2″ strut spacers

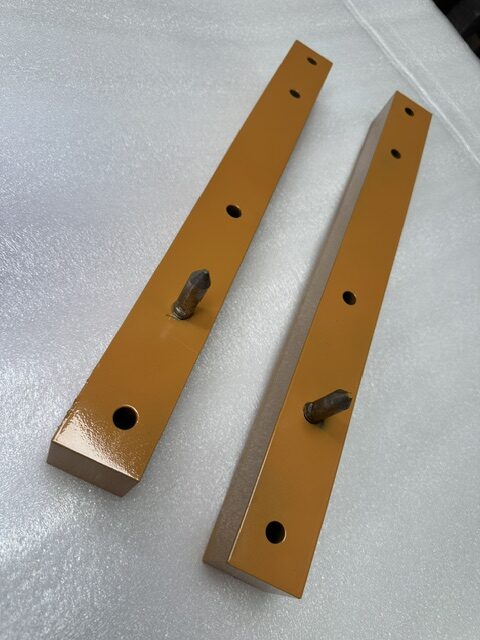

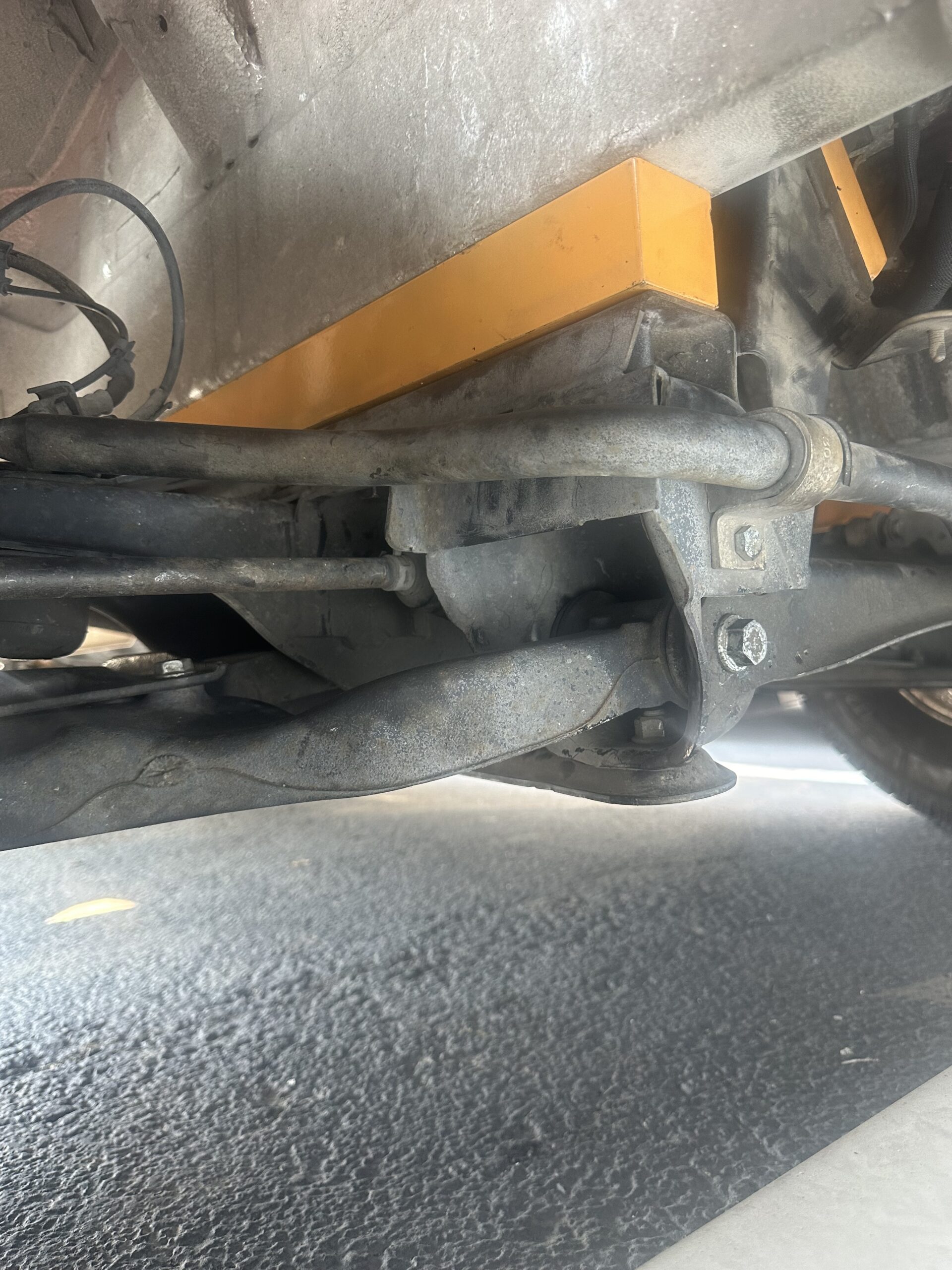

- Front 2″ subframe drop spacers
- Engine and transmission mount 2″ lift spacers
- CNC Machined 2″ steering shaft extension
- Low pressure power steering hose extension
- Front brake line relocation brackets
- Rear brake line relocation brackets

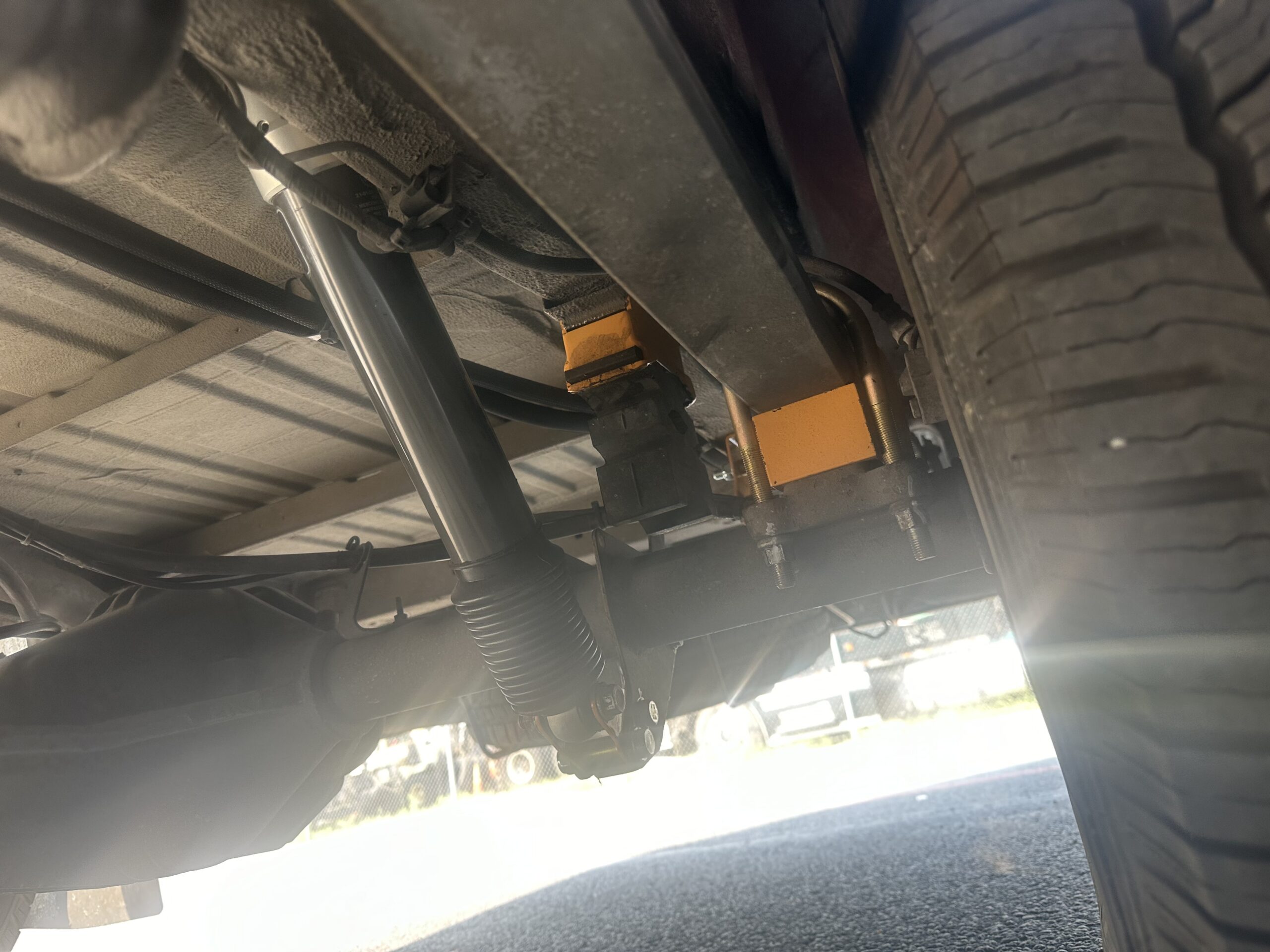

- Rear 2″ lift block
- U-bolts with nuts

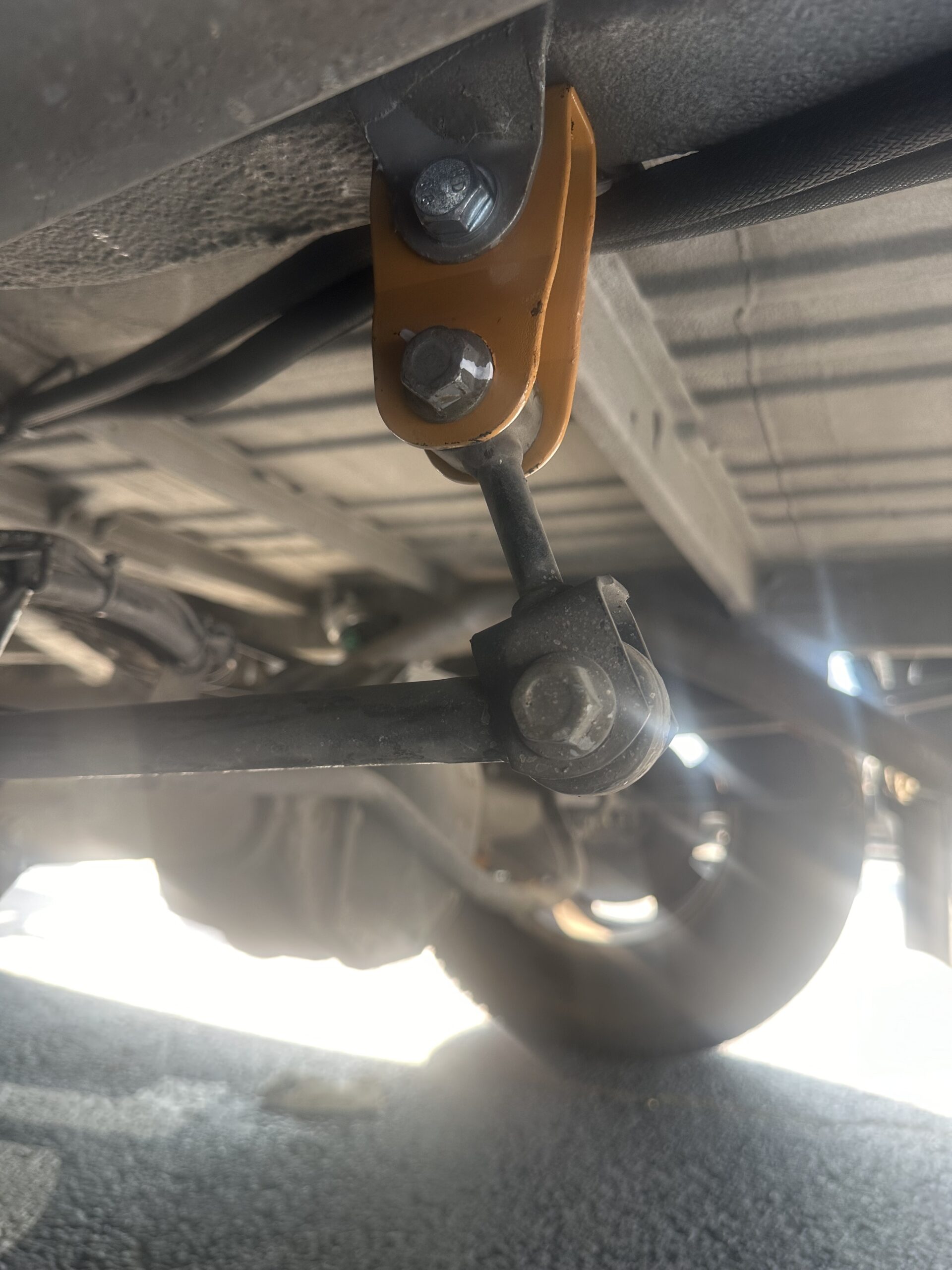

- Extended rear sway bar links (2500)
- Rear sway bar drop brackets (3500)
- Rear lower shock relocation brackets
- Rear bump stop drop brackets
- Wind assist or headlight leveling sensor bracket
- All necessary hardware and detailed instructions
Recommended Shop Labor Time: 12-16 Hours
